- 高度整合的功能包括PoE、GPIO和管理軟體
- 2 Port 和 4 Port 的讀取器配置
- 最快的讀取速度
- 支援 EPC Global LLRP 接口
- 支援.NET, C API
- 實現遠端和集中管理,同時簡化設置、佈署、測試和管理,並降低維運成本
{tab=產品特色}

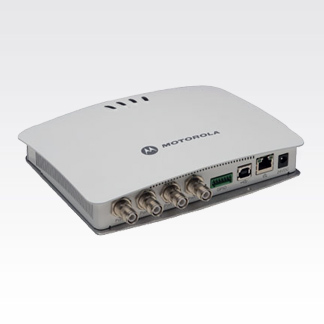

易於佈署、使用和管理,高性能FX7400 系列固定式 RFID 讀取器是在空間有限、面向客戶的環境中佈署,全球企業的理想選擇。
其精緻的設計,配配高度整合的企業功能,包括:自動發現和針對特定應用程序的設置,輕鬆安裝;乙太網路供電(PoE),和安全數據傳輸的進階功能。

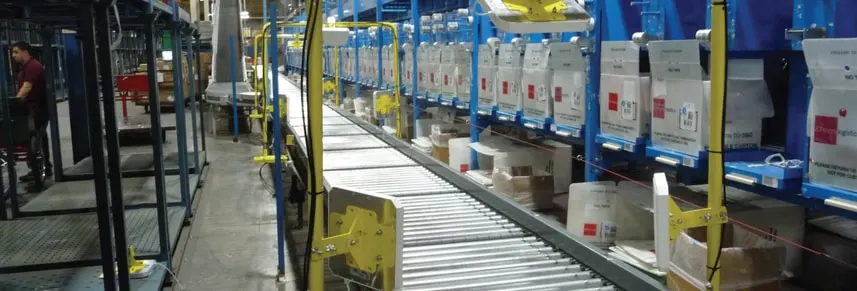

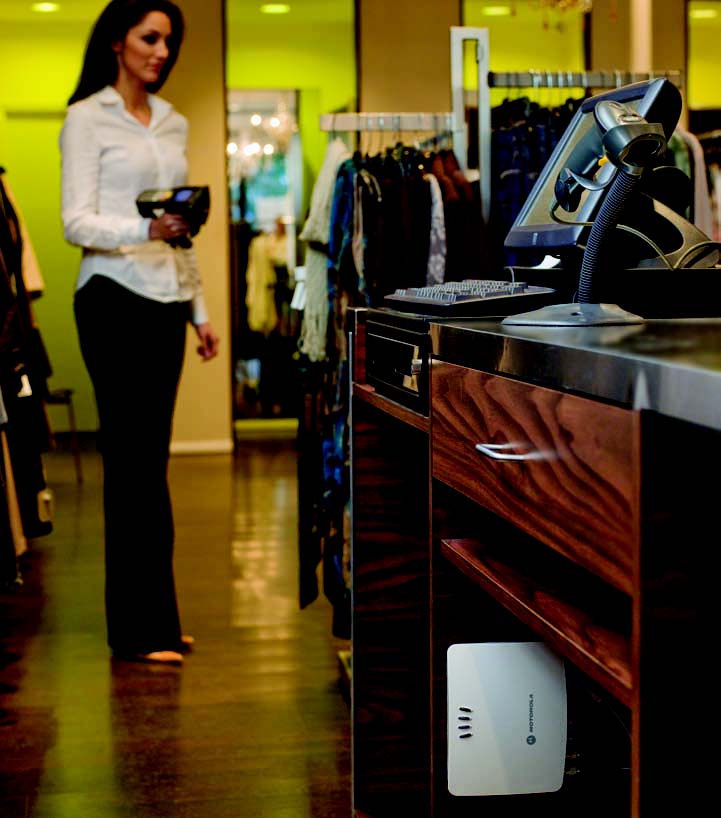

該獨一無二的組合使FX7400 系列的RFID 讀取器非常適合零售商場、倉庫庫存和企業資產管理應用,尤其是要求性能和小設備空間的 RFID 應用。
高度整合的功能包括PoE、GPIO和管理軟件
在每個讀取點實現低成本,並提供一流的總持有成本(TCO)
下一代的讀取器平台包括密集讀取器模式支持
最快的讀取速度提供了出色的讀取性能
EPC Global LLRP接口支持;全面的API支持-.NET, C
簡化應用程式的開發。
2 Port 和4 Port 讀取器配置
提供了應用的靈活性和最佳投資
基於開放標準的架構:
- 基於EPC 標准定義的讀取器管理
- 自動發現
- 靈活的固件更新功能
- Showcase II 管理工具
與現有IT 環境實現無縫整合,並實現遠程和集中管理,同時簡化了設置、佈署、測試盒管理並降低了隨之而來的成本
Microsoft Windows® CE.5.0直接應用程式託管;64MB RAM /64MB Flash
可實現與大量第三方應用程式的整合,大幅提高運營效率,有利於升級以滿足未來需求,進而提供出色的投資保護
{tab=產品規格}
FX7400 固定式RFID 讀取器 | |
---|---|
Physical Characteristics |
|
Dimensions | 7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D) |
Weight | 1.8 lbs ± 0.1 lbs (0.82 kg ± 0.05 kg) |
Housing Material | Die-cast aluminum, sheet metal and plastic |
Visual Status Indicators | Multicolor LEDs: Power, Activity, Status and Applications |
Mounting | Keyhole and standard VESA (75mm x 75mm) |
Connectivity |
|
Communications | 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B) |
General Purpose I/O | 2 inputs, 2 outputs, optically isolated (Terminal Block) |
Power Supply | +24Vdc or POE (IEEE 802.3af) |
Antenna Ports | FX 7400-4: 4 mono-static ports (Reverse Polarity TNC) FX 7400-2: 2 mono-static ports (Reverse Polarity TNC) |
Environmental |
|
Operating Temp. | -4° to +131° F/-20° to +55° C |
Storage Temp. | -40° to +158° F/-40° to +70° C |
Humidity | 5-85% non-condensing |
Regulatory Compliance |
|
Safety | UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1 |
RF/EMI/EMC | FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3 |
SAR /MPE | FCC 47CFR2:OET Bulletin 65; EN 50364 |
Other | RO HS, WEEE |
Hardware, OS and Firm ware Management |
|
Memory | Flash 64 MB; DRA M 64 MB |
Operating System | Microsoft® Windows® CE 5.0 |
Firmware Upgrade | Web-based and remote firmware upgrade capabilities |
Management Protocols | RM 1.0.1 (with XML over HTT P/HTT PS and SNMP binding); AirBEAM firmware upgrade (Level 2 support) |
Network Services | DHCP, HTT PS, FTPS, SSH, HTT P, FTP, Telnet, SNMP and NTP |
Air Protocols | ISO 18000-6C (EPC Class 1 Gen 2) |
Frequency (UHF Band) | Global Reader: 902 MHz~928 Mhz, 865 MHz~868 MHz US (only) Reader: 902 MHz to 928 MHz |
Power Output | +15dBm to +30dBm |
IP addressing | Static and Dynamic |
Host Interface Protocol | LLRP |
API Support | .NET and C |
Warranty | The FX7400-4 and FX7400-2 are warranted against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions. |
Recommended Services |
|
Customer Services | Service from the Start Advance Exchange Support |
Advanced Services | RFID Advanced Services |
